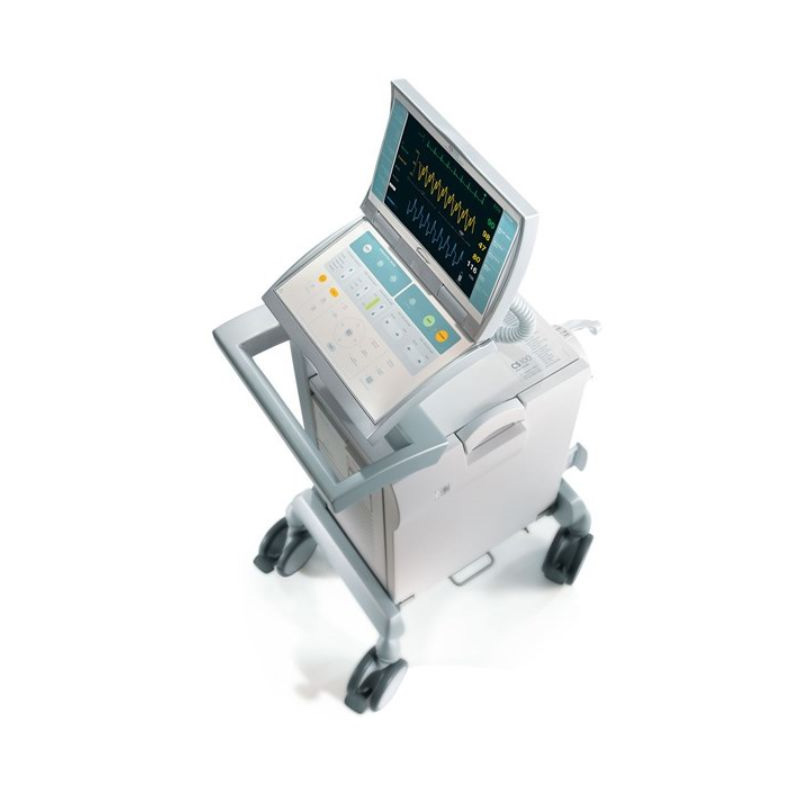

Maquet Datascope CS100 Intra-Aortic Balloon Pump (IABP)

The Maquet Datascope CS100 is an advanced IABP designed for versatility, ease of use, and optimal patient support. Featuring one-button startup and IntelliSync technology, the CS100 automatically adapts to changing patient conditions, providing reliable, continuous hemodynamic support. Its **three operating modes—Automatic, Semi-Automatic, and Manual—**allow caregivers to switch seamlessly based on clinical needs.

Key Features:

• Automatic trigger and timing management: Evaluates and selects the optimal trigger source and lead, inflates at the dicrotic notch, and deflates at the start of systole, adapting to changes in patient rhythms.

• Fast, one-button startup: Initiates autofill and 1:1 assist immediately.

• Laptop-style, foldable display: Detachable, full-color high-contrast screen with intuitive keypad allows remote operation and easy adjustment of sweep speed, brightness, balloon waveform, and inflation markers.

• Customizable display panel: Supports real-time adjustments for waveform visualization and monitoring.

• Durable design: Locking casters and sturdy construction provide stability in critical care and operating room settings.

• Fully annotated printouts: User-configurable waveforms and strip lengths for documentation.

Dimensions & Weight:

• On Cart: 42.2 in H × 17.6 in W × 23.4 in D (114.8 × 44.7 × 59.4 cm)

• Off Cart: 28.2 in H × 11.3 in W × 21.5 in D (71.6 × 28.7 × 54.6 cm)

• Monitor Weight: 9.5 lbs (4.3 kg)

• Console Weight: 133.2 lbs (60.4 kg)

Display:

• Full-color screen, 8.3 × 6.2 in (21 × 15.8 cm)

• Wide viewing angles: Up 45°, Down 55°, Right 70°, Left 70°

• Rotates 330° and tilts 180°

• Detachable, laptop-style closure for protection and storage

Power:

• Mains Voltage: 100–120 VAC ±10% or 220–240 VAC ±10%

• Frequency: 50/60 Hz ±3 Hz

• Internal Battery: 24 VDC, 17.2 Ah, approx. 3 hours at 90 bpm, maintenance-free sealed lead-acid

General Information:

• ECG Gain: 1 V output per 1 mV input ±5%, autoscaling 0.15–3.0 cm/mV ±20%

• Frequency Response: 0.5–12 Hz (display), 0.5–135 Hz (output)

• Defibrillator Protection: Discharge up to 360 J (trace returns to screen in ≤5 sec)

Operating Conditions:

• Temperature: 10–40°C

• Humidity: 5–95% non-condensing

• Altitude: 0–12,000 ft (3,657 m) with automatic IAB pressure correction

The CS100 IABP combines automated precision, ergonomic design, and flexible operation, making it ideal for critical care units and operating rooms where patient condition and workflow demands can change rapidly.
