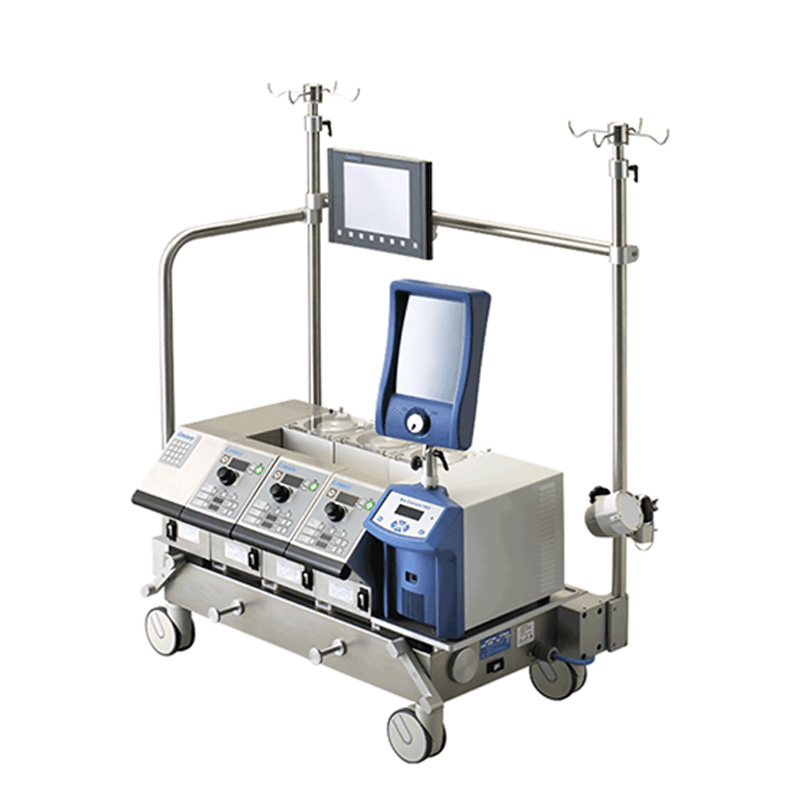

The Medtronic Cobe Century Heart-Lung Machine is a modular, user-friendly system designed with the perfusionist in mind. Combining sturdy construction, compact design, and easy-to-use components, it delivers reliable performance at an affordable price.
The Medtronic Cobe Century Heart-Lung Machine is a modular, user-friendly system designed with the perfusionist in mind. Combining sturdy construction, compact design, and easy-to-use components, it delivers reliable performance at an affordable price. The system can be enhanced with the Bio-Console 560 centrifugal arterial pump and Spectrum Viper Vision data management, providing seamless integration and advanced functionality.
Key Features:
User-friendly operation for advanced hemodialysis and perfusion procedures
Flexible configuration and integrated medical information management
Built-in video display for real-time monitoring
Easy-to-use automation system with push-button controls for prescription variability and other functions
Innovative cartridge blood tubing set reduces extracorporeal blood volume and saline requirements
Integrated arterial and venous pressure monitoring ports for enhanced patient safety
The Medtronic Century Heart-Lung Machine combines flexibility, precision, and efficiency, making it ideal for modern cardiac surgery and perfusion environments.
Perfusion Pumps – Specifications
Pump Dimensions & Weight:
Length: 22.1 in (56 cm)
Width: 7.1 in (18 cm)
Height: 13 in (33 cm)
Weight: 57 lbs (26 kg)
Display Accuracy (RPM):
±2% of reading or ± count, whichever is greater (without load)
Power Requirements:
Maximum Power Consumption: 280 Watts
Normal Power Consumption: 150 Watts
Leakage Current:
100/115 VAC: 12 mA rms maximum
230 VAC: 20 mA rms maximum
Occlusion:
230 VAC: 20 mA rms maximum
Console Bases Dimensions & Weight:
| Number of Pumps | Width (in/cm) | Weight (lbs/kg) |
|---|---|---|
| 3 | 27 in (69 cm) | 97 lbs (44 kg) |
| 4 | 34 in (86 cm) | 105 lbs (48 kg) |
| 5 | 41 in (104 cm) | 113 lbs (51 kg) |
| 6 | 48 in (122 cm) | 121 lbs (55 kg) |
| 7 | 55 in (140 cm) | — |
Electrical Configurations:
North America: 50/60 Hz, 115 VAC
UK & Europe: 50/60 Hz, 230 VAC
Japan: 50/60 Hz, 100 VAC
Line Voltage Tolerance: ±10% VAC
Circuit Breakers:
14 Amp at 115 VAC
10 Amp at 230 VAC
Electronics Module:
Depth: 21 in (53 cm)
Width: 7.1 in (18 cm)
Height: 12 in (31 cm)
Weight: 30 lbs (13.6 kg)
Display Module:
Depth: 2.4 in (6 cm) without mount / 8.7 in (22 cm) without fixed mount
Width: 13.3 in (34 cm)
Height: 9.3 in (24 cm)
Weight: 9 lbs (4 kg) with mount
Timers (3 Channels):
Range: 00:00:00 to 99:59:59 (hours:minutes:seconds)
Accuracy: ±1% of elapsed time
Power Consumption: Maximum 80 Watts
Circuit Breakers: 1.0 Amp (100/115 VAC), 0.6 Amp (230 VAC)
Leakage Current: 100/115 VAC: 20 mA rms, 230 VAC: 40 mA rms
Temperature Monitors (6 Channels):
Display Range: 0–50°C
Resolution: 0.1°C
Accuracy: ±1.0°C (with probe)
Transducer Compatibility: YSI-400 and YSI-500 (with calibration)
Pressure Monitoring (2 Channels):
Alarm Range: -200 to +400 mmHg
Limited Range: -210 to +450 mmHg
Accuracy: ±8 mmHg (with transducer)
Air Emboli Protection System (AEPS):
Open Reservoir Level Detection: Sensitivity within 1 cm of transducer; 0–40% Hct; blood temperature 10–40°C
Bubble Detection Sensitivity:
0.7 ml at flow rates <6.5 lpm (3/8” × 3/32” PVC tubing)
0.3 ml at flow rates <3.0 lpm (1/4” × 3/32” PVC tubing)
Pump Response Time: <1 second
Arterial Line Tubing Compatibility: 3/8” × 3/32” or 1/4” × 3/32” (PVC only)
Cardioplegia Delivery System:
Last Volume Delivered: 0–9999 ml
Total Volume Delivered: 0–9999 ml
Time Since Last Delivery: 0–99:59:59 (hours:minutes:seconds)
Accuracy: ±10% of desired volume
