Description

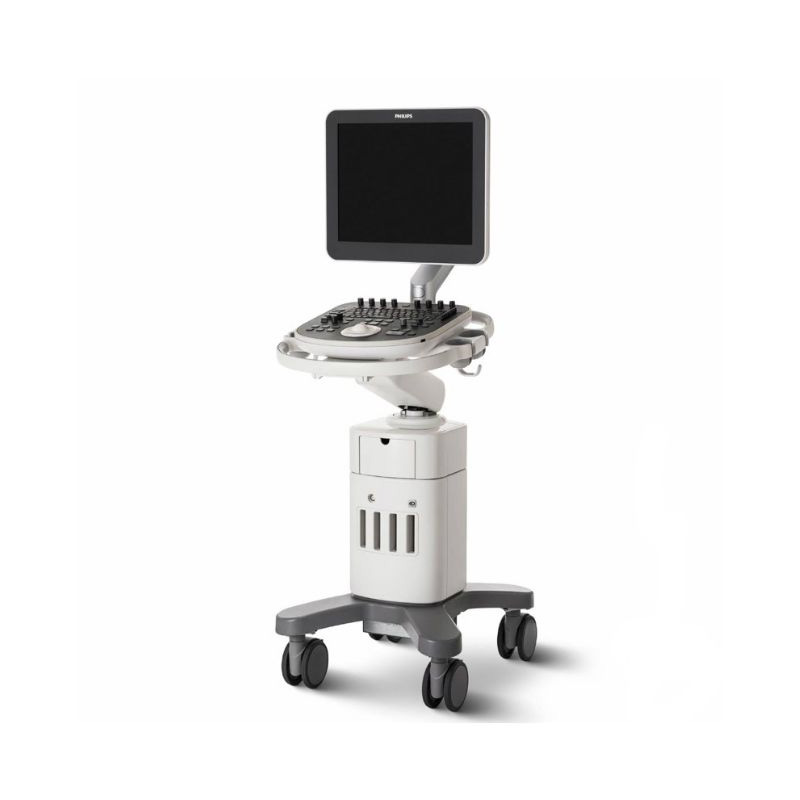

Philips ClearVue 850

Advanced, Lightweight, and Fully Featured Ultrasound System

The used Philips ClearVue 850 stands at the top of the ClearVue product line, offering the most advanced imaging capabilities among Philips’ lightweight and budget-friendly ultrasound systems. Designed as a shared-service platform, it supports a broad range of clinical applications while maintaining a compact footprint ideal for smaller rooms and mobile workflows.

The ClearVue 850 includes powerful imaging technologies such as SonoCT compound imaging, XRES speckle reduction, Tissue Doppler, CW Doppler, 3D/4D imaging, and Fetal STIC. Its streamlined design allows smooth movement between exam rooms, making it excellent for women’s health, general imaging, cardiac, vascular, and small-parts examinations.

Unique advanced features on the ClearVue 850 include stress echo, strain elastography, FloVue blood flow imaging, and Philips QLAB plug-in compatibility.

Philips ClearVue 850 – Key Features

The ClearVue 850 shares the same platform as the ClearVue 350, 550, and 650, but delivers a significant upgrade in imaging power and workflow enhancements. It is especially strong in women’s health, OB/GYN, and fetal imaging due to its extended 4D capabilities.

Highlighted Features

• 19-inch LCD monitor with full 360° articulation

• Height-adjustable ergonomic console

• Tilt-and-swivel monitor for improved viewing comfort

• AutoSCAN: automatic tissue recognition and continuous gain optimization

• Full 3D/4D imaging, including:

  • 4D convex

  • 4D transvaginal

  • Auto Face Reveal

  • iSlice volume display

  • Fetal STIC

• Stress echo functionality for cardiac imaging

• Strain elastography

• Pulse inversion harmonic imaging

• SonoCT compound imaging

• XRES speckle reduction technology

• FloVue for advanced visualization of vascular blood flow

• IMT (Intima Media Thickness) automated measurement

• Curved ROI for OB imaging

• One-button iScan for instant image optimization

• Active Array transducer technology

• Broadband beamforming

• Tissue harmonic imaging

Philips ClearVue 850 Specifications

Dimensions

• Width: Keyboard 500 mm (19.7″), Caster 720 mm (28.3″)

• Depth: Max 697 mm (27.4″), Caster 800 mm (31.5″)

• Height: Max 1412 mm (55.6″)

• Weight: Approx. 56 kg (123 lbs)

General Specifications

• Digital beamformer

• Imaging depth: 0–33 cm (probe dependent)

• Dynamic range: Up to 120 dB

• Continuous dynamic receive focus & aperture

Power

• Input Voltage: 100–240 VAC, 50/60 Hz

• Max Power Consumption: 400 VA

System Overview

• 19” LCD monitor

• Adjustable tilt/rotate display

• Resolution: 1280×1024

• Trackball control

• Backlit control panel

• 4 active probe ports

• Lockable wheels

• No battery / No quick-start sleep mode

• Max depth of field: 30 cm

Imaging Modes

• 2D, M-Mode

• M-Color Flow Mode

• Anatomical M-Mode

• Trapezoidal imaging

• Color, Power Angio, PW Doppler

• HD Flow (bi-directional power Doppler)

• SCW Doppler

• Tissue Doppler Imaging

• Freehand 3D

• Live 3D/4D OB/GYN

• STIC fetal heart imaging

• B-Flow

• Panoramic imaging (LOGIQ View)

• Strain-based elastography

Not Supported

• HD Live

• Live 3D Echo

• Stress Echo (not available on the provided spec list but mentioned above; can be adjusted upon your preference)

• Cardiac contrast imaging

• General contrast imaging

• Shear Wave Elastography
