Description

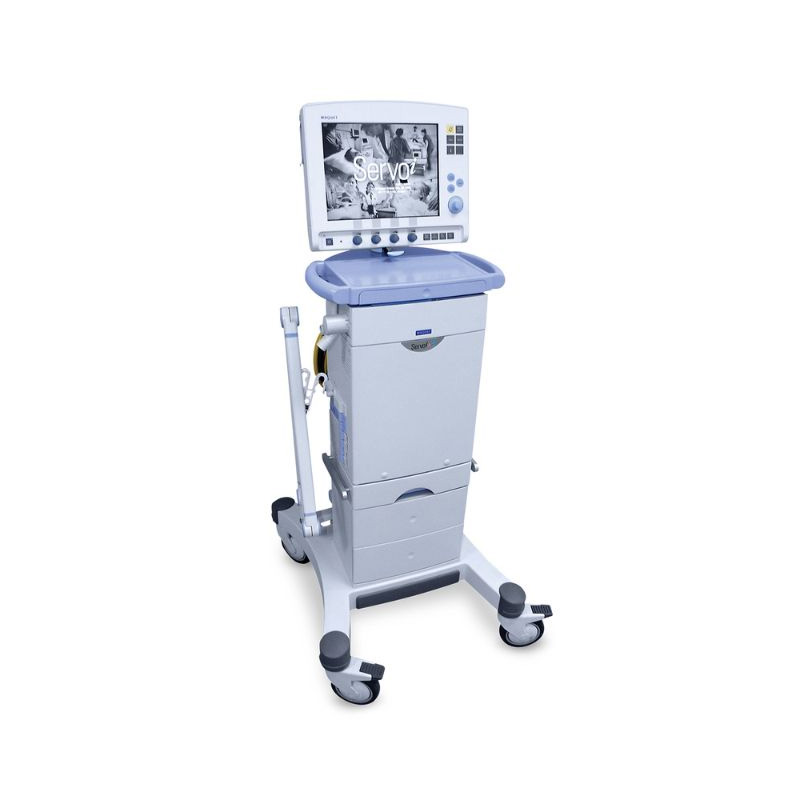

Siemens Maquet Servo-i

The Maquet Servo-i Ventilation System is a versatile, high-performance ventilator designed to provide exceptional respiratory care for neonatal, pediatric, and adult patients. Built for precision, adaptability, and safety, the Servo-i can manage all stages of respiratory distress — from acute conditions through recovery — delivering gentle and effective ventilation tailored to each patient’s needs.

Comprehensive Patient Support

The Servo-i is engineered to serve a wide range of patient categories, making it ideal for use across ICU, NICU, and transport settings. It supports both invasive and non-invasive ventilation, allowing seamless adaptation to different clinical requirements without compromising performance or treatment quality.

Key Features and Benefits

Advanced Ventilation Performance

• Handles the full spectrum of patients — neonatal to adult (300 g to 150 kg)

• Invasive and non-invasive ventilation with automatic leakage compensation

• CO₂ Analyzer for end-tidal carbon dioxide monitoring

• Y-sensor measurement provides accurate pressure and flow readings close to the patient’s airway

• Heliox therapy option minimizes airflow resistance and improves CO₂ elimination

• Stress Index feature helps identify and prevent injurious ventilation (VILI) by monitoring lung compliance

• Open Lung Tool and Automode™ options allow clinicians to investigate and apply optimal ventilation strategies

Ease of Use and Intelligent Design

• Intuitive user interface with clear menus and direct-access knobs for quick adjustments

• Displays all critical parameters in real time, keeping clinicians informed and in control

• User-friendly navigation for faster response and improved workflow

• Ventilation Record Card facilitates clinical documentation and research

Flexible Configurations

Available in three configurations to match your clinical needs:

• Infant – for neonatal and pediatric use (excludes Stress Index and HBO options)

• Adult – designed for adult patients (excludes Nasal CPAP and HBO)

• Universal – fully featured for all patient categories

Mobility and Cost-Efficiency

• Compact, modular design ensures mobility within and between departments without treatment interruption

• Upgradeable modular platform reduces long-term costs — no need for multiple systems for different patient types

• Fleet standardization improves training efficiency and service support

Refurbishment and Quality Assurance

Soma Technology offers fully refurbished Maquet Servo-i ventilators, restored to OEM specifications both technically and cosmetically.

• Units are inspected, tested, and recalibrated by certified biomedical engineers

• Worn components are replaced, and the system is repainted and relabeled to look and function like new

• Delivered at up to 50% below OEM pricing, including warranty and service support equivalent to a new model

Technical Specifications

Dimensions

• Height: 131.5 cm (51.8 in)

• Width: 56 cm (22 in)

• Depth: 64 cm (25.2 in)

• Weight: 20 kg (44.1 lbs)

Display

• 12.1” TFT-LCD color screen

• Viewing area: 246 × 184.5 mm

Power & Battery

• Voltage: 100–240 V AC (automatic range)

• Frequency: 50–60 Hz

• Dual rechargeable 12V, 3.5Ah batteries

• Recharge time: ~3 hours per battery

• Backup time: Up to 3 hours with six batteries

Operating Conditions

• Temperature: +10°C to +40°C

• Humidity: 15–95% (non-condensing)

• Atmospheric pressure: 660–1060 hPa

Invasive Ventilation

• Tidal Volume: Adult 100–4000 ml / Infant 2–350 ml

• Inspiratory Flow: ≤200 l/min

• PEEP: 0–50 cmH₂O

Non-Invasive Ventilation

• PEEP: 2–20 cmH₂O

• Leakage compensation: Up to 200 l/min (adult), 33 l/min (infant)

Connectivity

• 2× RS232 ports, remote alarm output, MCare remote service

• Compatible with MSync HL7 interface for data integration
