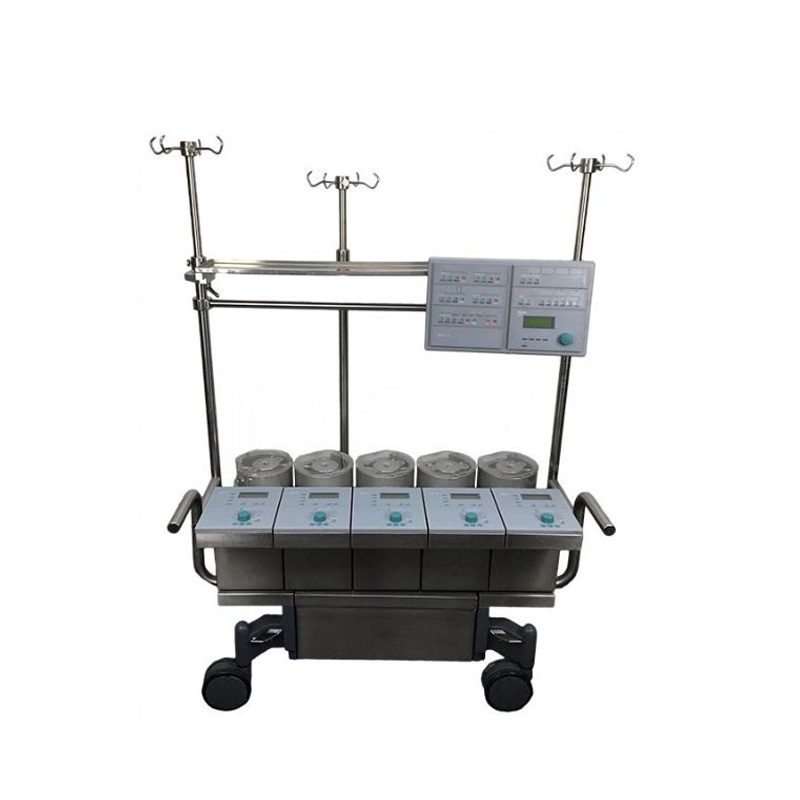

Sorin Stöckert SIII Perfusion System

The SIII is Stöckert’s third-generation perfusion system, designed with the latest technological advances to provide reliable and flexible support during cardiac procedures. Its modular design allows full customization to meet individual clinical requirements and is fully compatible with the DMS Case Management System.

System Features:

• Modular perfusion system

• Configurable with three single heads and one double head

• Integrated modules include: Level control, Temperature monitoring, Cardioplegia, Timer, and two Pressure monitors

Key Specifications:

Timer:

• Operating Voltage: +5 V

• Power Consumption: 3 W

• Timer 1 Counting Range: 0–9 min 59 sec or 0–9 h 59 min (selectable)

• Timer 2–3 Counting Range: 0–9 h 59 min

Temperature Monitor:

• Operating Voltage: +5 V

• Power Consumption: 3 W

• Measurement Range: 0°C to +50°C

• Resolution: 0.1°C

• Accuracy: ±0.2°C

• Display Refresh Rate: 1 Hz

Level Control:

• Operating Voltage: +5 V

• Power Consumption: 1.5 W

• Stop Limit Accuracy: ±10 mm (Level display on sensor holder)

Dimensions & Weight:

• 3-Pump Console: 700 mm (H) × 790 mm (W) × 648 mm (D), 118 kg

• 4-Pump Console: 700 mm (H) × 990 mm (W) × 648 mm (D), 144 kg

The Stöckert SIII combines modular flexibility, precision monitoring, and robust engineering, making it a reliable choice for modern cardiac perfusion procedures.
