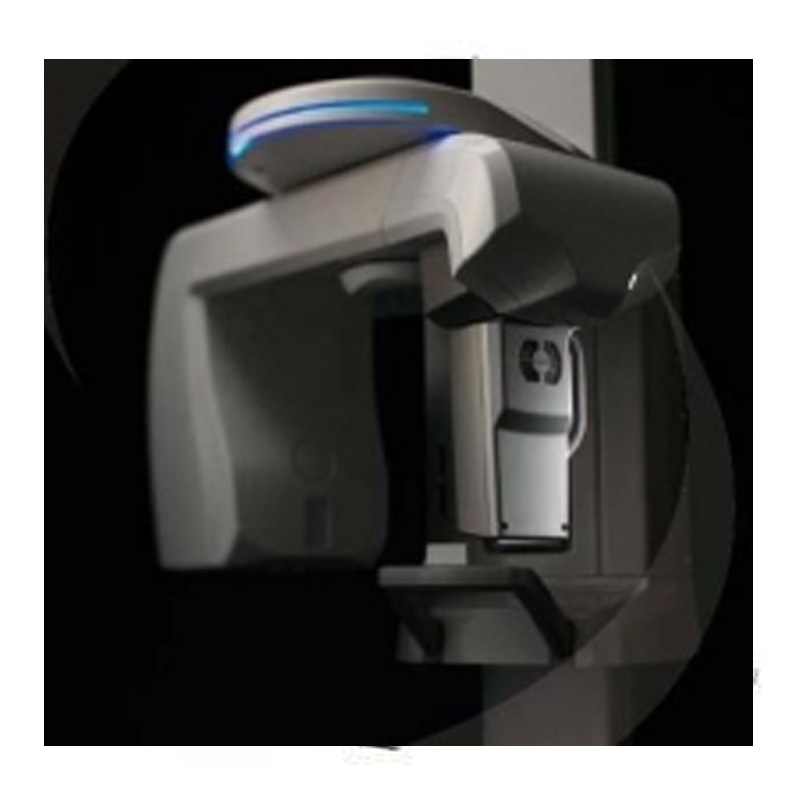

New X-ray machine with 3D X-ERA Smart function is made in Japan by The Yoshida Dental. The company was established in 1906.
New X-ray machine with 3D X-ERA Smart function is made in Japan by The Yoshida Dental. The company was established in 1906.
Advantages of this X-ray machine:
In this given x-ray machine a latest CMOS technology has been used. With the help of this technology the quality of the image is very high.
First you can buy only a X-ray unit and then upgrade it to 3D or Cephalometric or also 3D and Cephalometric.
Technical specifications:
2D Panoramic
| Sensor | CMOS sensor (Flat panel detector ) |
| pixel size | 100μm |
| Data Bit (Gray scale) | 16bit |
| Exposure time | Panorama 8sec, 14sec, 16sec |
| Child : 6.4sec, 11.2sec, 12.8sec | |
| TMJ 4sec x 2 | |
| Program mode | Panorama, Child, TMJ |
| SID | 485mm |
| SOD | 350mm |
2D Cephalometric
| sensor | CMOS sensor (Flat panel detector ) |
| pixel size | 100μm |
| Exposure time | 8sec, 10sec |
| Program mode | LA, AP, PA, Carpus |
| SID | 1650mm |
| SOD | 1500mm |
3D
| Sensor | Flat Panel Detector |
| FOV Dent Mode | Ø40mm x 57mm |
| FOV Oral Mode | Ø 77mm x 54mm |
| Voxel size (Slice Pitch) Dent Mode | 80μm |
| Voxel size (Slice Pitch) Oral Mode | 110μm |
| Exposure time Dent mode | 11.5sec. |
| Exposure time Oral mode | 23.0sec. |
| Rotating Angle | 190° |
Additional options are also possible. For more information please contact us.
