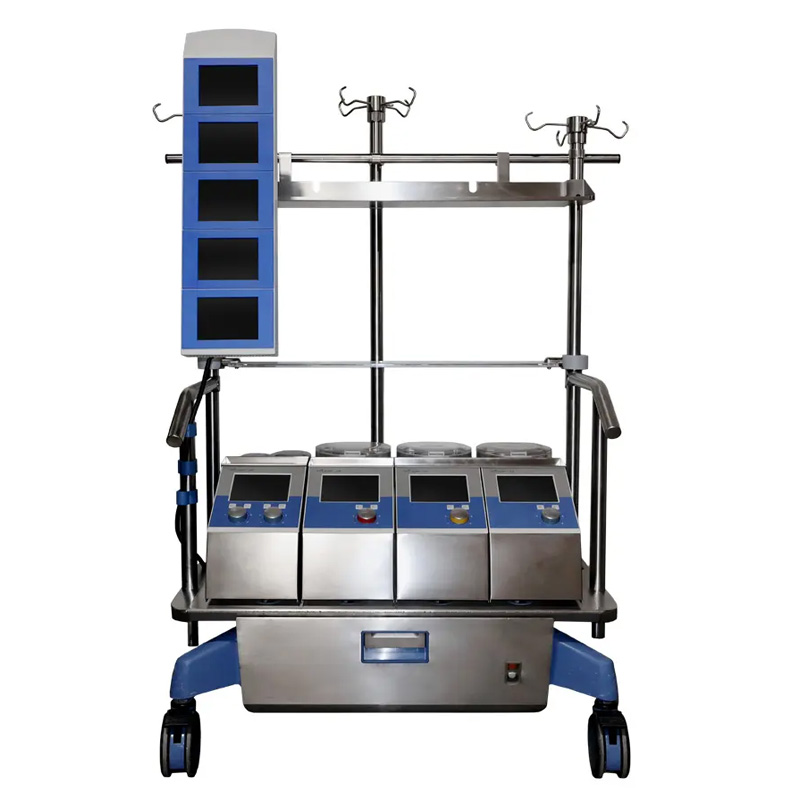

LivaNova Sorin Stockert S5 Perfusion System

The LivaNova Sorin Stockert S5 is a fifth-generation heart-lung perfusion system designed for superior performance, advanced control, and flexible configuration. Its modular design, similar to the Sorin Xtra system, allows high customization to meet a wide range of surgical requirements.

The S5 can be configured as a basic setup with three roller pumps or expanded to a full system with five roller pumps and an integrated monitoring module. Its versatile components include roller pumps, double roller pumps, a centrifugal pump, and a system control panel, providing precision and efficiency for complex procedures. Each roller pump features an independent touchscreen interface and a knob for precise speed adjustments, ensuring streamlined operation and enhanced control.

Key Features:

• Console supports 3 to 5 roller pumps, with 2 additional pumps mountable on the mast

• Panel options with 3, 4, or 6 display modules

• Compatibility with SIII and SI Encore systems allows easy transfer of external devices and data management to the S5

• Pump heads are rotatable to optimize tubing layout

• Supports stacking of up to 4 TFT displays vertically for enhanced monitoring

• Brushless, direct-drive roller pumps reduce noise while ensuring smooth, reliable operation

The Stockert S5 delivers precision, modularity, and advanced control, making it ideal for modern cardiac surgery environments where flexibility and performance are critical.

LivaNova Sorin Stockert S5 – Specifications

Console Dimensions & Weight:

• Height: 25” (64 cm)

• Depth: 23.6” (60 cm)

• Width:

  • 3-Position: 29.3” (74.5 cm, including push bars)

  • 4-Position: 35” (89 cm, including push bars)

  • 5-Position: 42.2” (107.3 cm, including push bars)

• Weight:

  • 3-Position: 183.9 lbs (83.4 kg)

  • 4-Position: 190.3 lbs (86.3 kg)

  • 5-Position: 197.3 lbs (89.5 kg)

Pump Dimensions & Weight:

• Roller Pump 150: 11.22” H × 7.1” W × 19.1” D (28.5 × 18 × 48.5 cm), 33 lbs (15 kg)

• Double Roller Pump 85: 10.1” H × 7.1” W × 19.1” D (25.7 × 18 × 48.5 cm), 26.5 lbs (12 kg)

• Mast Roller Pump 150: 11.4” H × 7” W × 11.8” D (28.9 × 17.8 × 29.9 cm), 24.4 lbs (11.9 kg)

• Mast Roller Pump 85: 9.3” H × 4.6” W × 6.9” D (23.7 × 11.6 × 17.5 cm), 11 lbs (5 kg)

• 2 Mast Roller Pumps 85: 9.3” H × 10.2” W × 7.9” D (23.7 × 26 × 20 cm), 24.3 lbs (11 kg)

Pump Specifications:

• Roller Pump:

  • Raceway Diameter: Ø150 mm

  • Occlusion Roller Diameter: Ø30.5 mm

• Double Roller Pump:

  • Raceway Diameter: Ø85 mm

  • Occlusion Roller Diameter: Ø15 mm

• Speed Range: 0–250 rpm (clockwise or counterclockwise)

• Speed Accuracy Deviation: ±1% of terminal value + ±0.5% of set value

• Fault Speed Deviation: Max +15% during continuous operation; 2 revolutions max before stopping

• Direction of Rotation: Clockwise / Counterclockwise

System Panel Dimensions & Weight:

• 3 Display & Control Modules: 18.7” H × 7.2” W × 3.7” D (47.5 × 18.4 × 9.4 cm), 8.6 lbs (3.9 kg)

• 4 Display & Control Modules: 23.2” H × 7.2” W × 3.7” D (59 × 18.4 × 9.4 cm), 9.9 lbs (4.5 kg)

• 5 Display & Control Modules: 28.5” H × 7.2” W × 3.7” D (72.3 × 18.4 × 9.4 cm), 11.2 lbs (5.1 kg)

• 6 Display & Control Modules: 18.7” H × 14.7” W × 3.7” D (47.5 × 37.5 × 9.4 cm), 15.4 lbs (7 kg)

Pressure & Cardioplegia:

• Measurement Range: -200 mmHg to +800 mmHg

• Resolution: 1 mmHg

Temperature Monitoring:

• Display Range: 0°C to +50°C

Timer:

• Counting Range: 0 – 999 min 59 sec
