Description

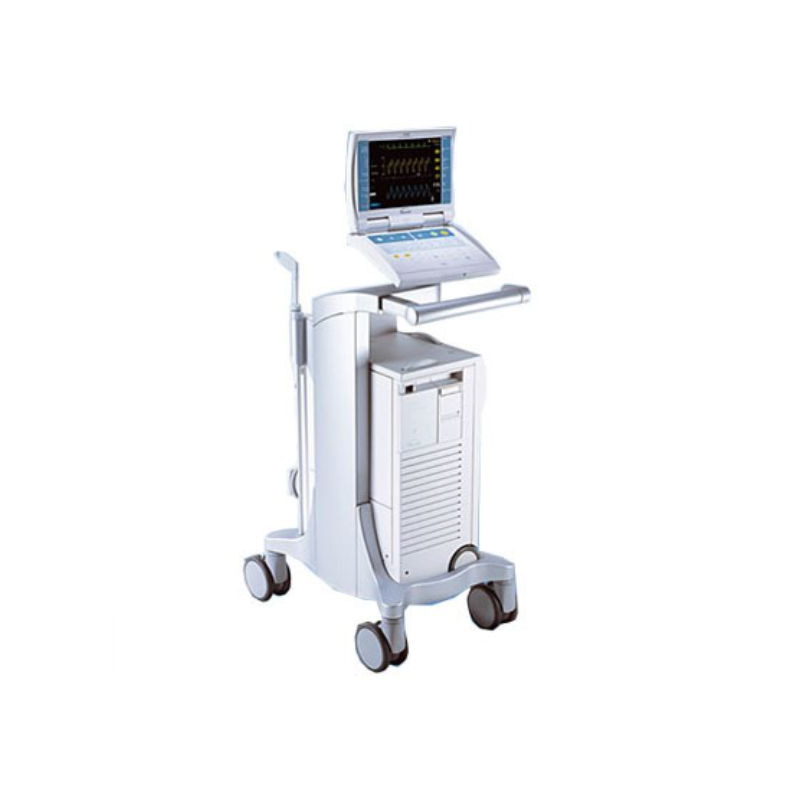

Maquet Datascope CS300 IABP with IntelliSense

The Maquet Datascope CS300 Intra-Aortic Balloon Pump (IABP) with IntelliSense combines fiber-optic speed with automatic in vivo calibration, delivering faster therapy, quicker signal acquisition, and rapid adaptation to changes in heart rate and rhythm. It is the only fiber-optic IABP and catheter system that automatically calibrates within the patient after insertion and re-calibrates every two hours—or sooner if patient or environmental conditions change.

Key Features:

• Augmentation and support during diastole for improved cardiac output

• Faster inflation and deflation speeds for enhanced hemodynamic support

• True one-button start-up for rapid operation

• Automatic in vivo calibration of the fiber-optic pressure sensor with re-calibration every 2 hours or sooner as needed

• Automatic lead and trigger evaluation for optimal timing and performance

• Automatic timing optimization to maximize therapy efficiency

Specifications:

Dimensions & Weight:

• On Cart: 43.1” H × 22.3” D × 16.8” W (109 × 56.6 × 42.7 cm)

• Off Cart: 26.9” H × 20.5” D × 10.8” W (68.3 × 52.1 × 27.4 cm)

• Console Weight: 84.8 lbs (38.4 kg) nominal (includes S.D., CRM, and He tank)

• Monitor: 9.5 lbs (4.3 kg) nominal

• Hospital Cart: 52.4 lbs (23.8 kg) nominal

• Internal Battery: 34 lbs (15.4 kg) nominal

• Storage Bag: 4.6 lbs (2.1 kg) nominal (includes doppler and holder)

Display:

• Color TFT LCD for high-visibility monitoring

Trigger Options:

• ECG Trigger: Automatically adjusts threshold for high sensitivity and selectivity of R-wave detection (Min: 120 µV ± 20 µV at normal gain; 40 µV at max gain)

• Pressure Trigger: Default threshold automatically set at 38% of systolic pulse height (min: 7 mmHg); manual adjustable range 7–30 mmHg ± 3 mmHg

• Pacer Triggers:

  • A Trigger: R-wave detection with 100 ms pacer blanking

  • V/A-V Trigger: V pacer up to 185 bpm, A-V pacer up to 125 bpm with intervals 80–224 ms

Pressure Output:

• Electrically isolated, range 0–+300 mmHg

ECG:

• Leads: Auto Mode – I, II, III, External; Semi-Auto – I, II, III, AVR, AVL, AVF, V, External (12-lead compatible)

• Gain: 1 V per 1 mV input ±5%, waveform automatically scaled to display window

The CS300 provides rapid, reliable, and precise cardiac support, combining cutting-edge fiber-optic technology with fully automated calibration and timing features for optimal hemodynamic assistance.
